Architectural Color Coated Chain Link Systems

CL_COLORCOATED

Architectural Color Coated Chain Link Systems

Architectural color coated chain link systems are the natural choice for projects that require the aesthetically pleasing benefits of color, and the dependable security of chain link. Available in three environmentally-inspired colors – brown, green and black – color coated chain link systems blend naturally with the environment and allow the beauty of the landscape and architecture to show through.

The architectural color coating is applied to the wire in one of three ways, Extruded (Good), Extruded & Adhered (Better) or Fused & Adhered (Best), and each method begins with a galvanized steel core wire. This process provides a double coating of protection and assures years of maintenance free performance.



Product Features

  • 15-Year Limited Warranty
  • Maintenance free
  • Residential, Recreational, Commercial, Industrial and High Security Applications
  • Fabric Available in:

- Extruded (Good)

- Extruded and Adhered (Better)

- Fused and Adhered (Best)

  • Matching Framework , Fittings and Gates Available
  • Choose from Light Mil or Heavy Mil Framework
  • Three Standard Environmentally Blending Colors – Black, Green, Brown
  • Custom Colors Available

FABRIC

Our Architectural Color Coated Chain Link fabric is produced in a variety of gauge and mesh sizes, and is available in heights of 36”, 42”, 48”, 60”, 72”, 84”, 96”, 120”, and 144”.

guagemeshcharts4

Gauge – refers to the diameter of the wire used to produce the fabric; the higher the gauge number the smaller the wire diameter. On color fabric, two gauge sizes are referenced. He first gauge listed refers to the size of the galvanized core wire while the second gauge listed represents the size of the finished product.

Mesh Size – is the clear distance between parallel wires forming a diamond; the smaller the mesh size, the tighter the fabric.

Selvage – refers to the way the individual ends of the wire are finished after being woven together. The wire can be “knuckled” to avoid sharp ends or “Twisted” when more security is required.

Architectural Color Coated wire is produced in three classes:

  • Class 1 – PVC coating extruded over galvanized steel core wire
  • Class 2a – PVC coating extruded and adhered to galvanized steel core wire
  • Class 2b – PVC coating is fused and adhered to galvanized steel core wire

selvage_measure

FRAMEWORK

Matching architectural color coated galvanized steel framework is available in a variety of gauge and diameter sizes, for 3’ to 12’ high chain link fence systems.

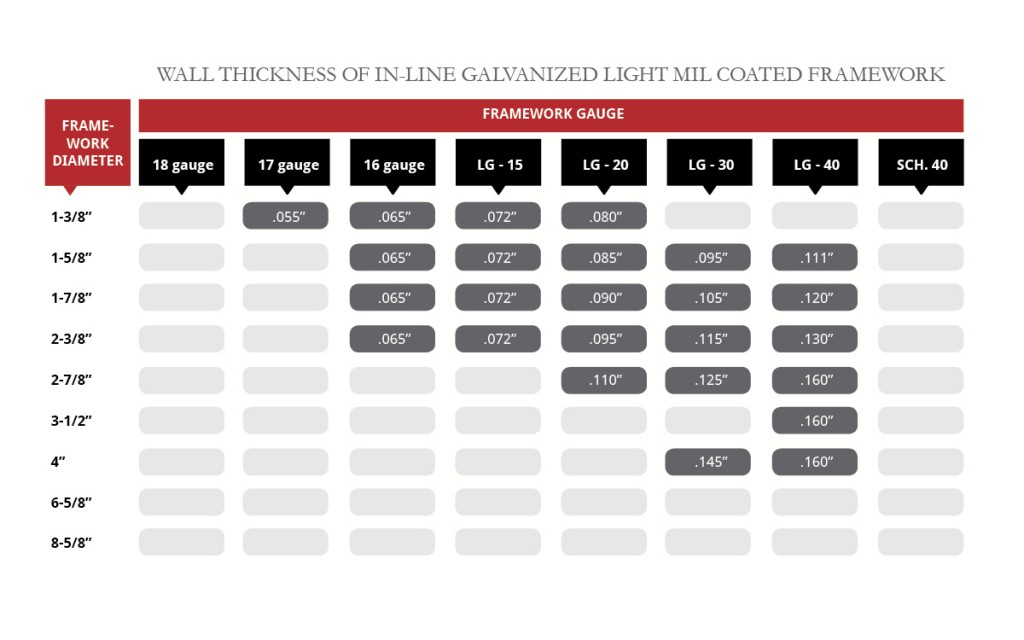

Framework for color systems is available in both a Light Mil and Heavy Mil option, both coated over a galvanized substrate. Light mil framework has a total color coating thickness of 3 mils, while the superior Heavy Mil coating has a coating thickness of at least 10 mils.

CHAINLINK_TABLES_LMIL

horzdiv_01

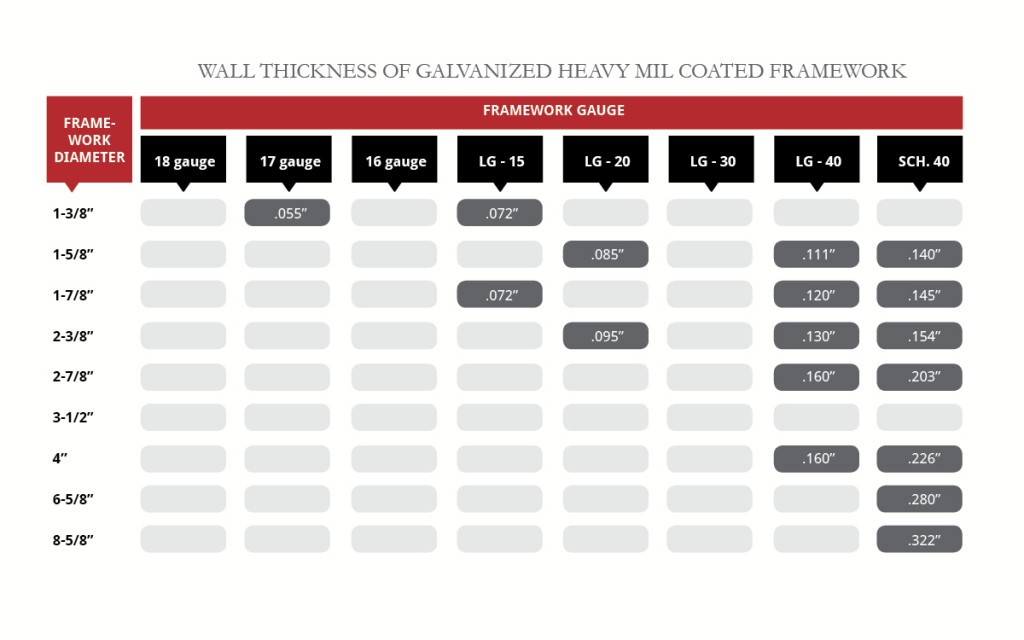

Wall Thickness Heavy Mil

COLORS

CL_BLACK

BLACK

GREEN

GREEN

BROWN

BROWN

CUSTOM

CUSTOM

GATES

A full line of matching single, double, cantilever and roll gates are available to complete your architectural color coated chain link project.

SINGLE GATE

SINGLE GATE

DOUBLE GATE

DOUBLE GATE

Cantilever Gate

CANTILEVER GATE

ROLL GATE

ROLL GATE

ACCESSORIES

Our complete line of fittings and accessories are color coated in-house to ensure product quality and availability, and fence slats can be added to provide additional privacy.

LINE & POST FITTINGS

cl_access

GATE FITTINGS

cl_access2

horzdiv_01

BARBED WIRE & ACCESSORIES

cl_access3

FENCE SLATS

cl_access7
